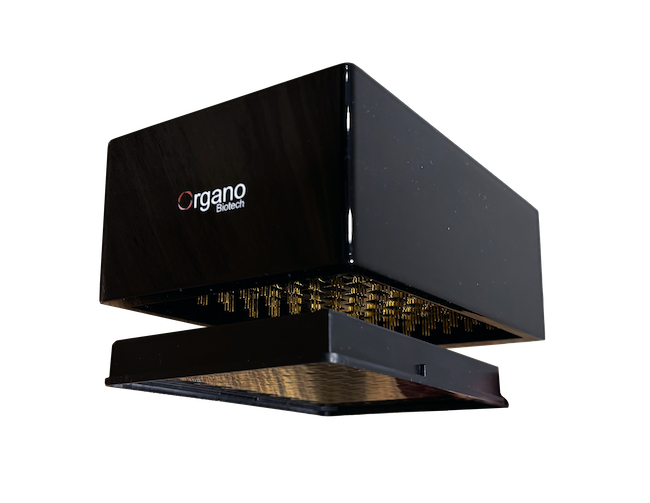

AngioTEER is a high throughput and automated TEER meter developed to address the limitations of conventional TEER meters. Traditional TEER sensors lack high throughput capabilities, creating challenges in measuring larger sample sizes. Additionally, their manual measurement process can intro duce human bias and errors into the results. Angio TEER consists of two main components: an electrode board housing an array of gold plated electrode pairs and an enclosure designed to encase the electrode board for user convenience.
The electrode board includes a built in power cable and Wi-Fi connection, enabling users to power and access the device seamlessly via Wi-Fi and the AngioTEER software, which automatically records measured values in realtime. The device is designed to be compatible with IFlowPlate, AngioPlate, and UniPlate, and functions as a lid for seamless integration. Angio TEER enables automated, high throughput evaluation of tissue barriers, particularly for assessing drug induced toxicity in a time and dose dependent manner. Can safely operate in temperate range from 4 to 37 Celsius Advanced Programming capabilities
| Product Code | B002; B002-2 |
|---|---|
| Power Requirement | 24 VDC; 2.5 Amp |
| Operating Relative Humidity | 5 – 90% non-condensing |
| Operating Temperature | 4 – 40°C |
| Altitude | <2000m |
| Storage Temperature | -40 to 50°C |
| Compatibility | Works with IFlowPlate (A001-2), AngioPlate, UniPlate, and UniPlate II |
| Range | Default range of 3,000-10,000 ohms, expandable to 50,000-200,000 ohms |
| Operational Space Required | +1-30 degrees tilt with single shelf: minimal height of 20 cm; 37.5cm of width; and 39cm in depth |
| Weight of Equipment | 0.5kg |
| Warranty | 1 year |
| Certification | CE |
| Software for Data Collection | N/A |
Default range of 3,000-10,000 ohms, expandable to 50,000-200,000 ohms.
Supports data collection from up to 128 tissues, with real-time continuous measurement of 64 tissues.
Default range of 3,000-10,000 ohms, expandable to 50,000-200,000 ohms.
Compatible with IFlowPlate384 (A001-2), AngioPlate384, and UniPlate384.
Features easy-to-clean electrodes and a robust enclosure design for long-lasting performance.
